Our Products

Single Plodder Machine (Single Warm)

• Heater is provided at the front edge of the conical mouth for better extrusion and bar finish
• Water ring is provided as optional accessory
• Spider plates are provided with Teflon supports to ensure worms rest at centre
• The end bearings are designed with adequate sturdiness for longer running life
• Seamless or ERW pipes are used for barrel construction
• Plodders are widely used in the manufacture of soaps, detergents, mosquito coils etc.
• The plodders are made in different configurations viz. Single Worm Simplex Plodder, Twin Worm Simplex Plodder, Single Worm Duplex Vacuum Plodder & Twin Worm Duplex Vacuum Plodder
• The Worms are made of SS / MS / EN 8 constructions either casted or solidly fabricated
• Vacuum chamber is made of SS 304 and SS202 with toughened view glasses
• Pitch distances are variable and reducing fashion to produce compact soap bars
• The Clearance between the worm and barrel will be 1 – 1.5 mm on all sides
• The plodder is provided with jackets for cooling water circulation

Cylinder Dia : 100mm, 150mm, 200mm, 250mm, 300mm, 350mm and 400mm Batch Sizes.

DOUBLE PLODDER MACHINE (SINGLE WARM)

• Heater is provided at the front edge of the conical mouth for better extrusion and bar finish
• Water ring is provided as optional accessory
• Plodders are widely used in the manufacture of soaps, detergents, mosquito coils etc.
• The plodders are made in different configurations viz. Single Worm Simplex Plodder, Twin Worm Simplex Plodder, Single Worm Duplex Vacuum Plodder & Twin Worm Duplex Vacuum Plodder
• The Worms are made of SS / MS / EN 8 constructions with Molded.
• Pitch distances are variable and reducing fashion to produce compact soap bars
• The Clearance between the worm and barrel will be 1 – 1.5 mm on all sides
• The plodder is provided with jackets for cooling water circulation
• Spider plates are provided with Teflon supports to ensure worms rest at centre
• The end bearings are designed with adequate sturdiness for longer running life
• Twin Worm plodders are provided with left and right gear drives through external or inbuilt mono-block gear boxes
• Seamless or ERW pipes are used for barrel construction

Cylinder Dia : 100mm, 150mm, 200mm, 250mm, 300mm, 350mm and 400mm Batch Sizes.

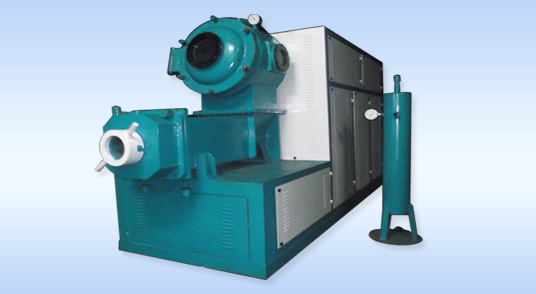

DUPLEX VACUUM PLODDER (TWINE WARM)

• Plodders are widely used in the manufacture of soaps, detergents, mosquito coils etc.
• We provided vacuum champers with vacuum pump for the remove able of soap’s moisture.
• And vacuum pressure meter also attached with vacuum pump
• The Worms are made of SS / MS / EN 8 constructions either casted or solidly fabricated
• Pitch distances are variable and reducing fashion to produce compact soap bars
• The Clearance between the worm and barrel will be 1.5 mm on all sides
• The plodder is provided with jackets for cooling water circulation
• Spider plates are provided with Teflon supports to ensure worms rest at centre
• The end bearings are designed with adequate sturdiness for longer running life
• Twin Worm plodders are provided with left and right gear drives through external or inbuilt mono-block gear boxes
• Seamless or ERW pipes are used for barrel construction
• Vacuum chamber is made of SS 304 and SS202 with toughened view glasses
• Heater is provided at the front edge of the conical mouth for better extrusion and bar finish
• Water ring vacuum pump is provided as optional accessory

Cylinder Dia : 100mm, 150mm, 200mm, 250mm, 300mm, 350mm and 400mm Batch Sizes.

The automatic soap cutting and stamping machine is used to cut soap bar from the plodder, Cut the soap to billets and stamp the necessary logo.

We are offering our valuable customers a wide array of Hand Operating Cutting and Stamping Machine. The machines we offer are manufactured by a team of deft experts, following the norms and guidelines already laid down by the industry. To fulfill the diverse requirements of the clients, we offer these reliable and brilliantly performing machines in different sizes and specifications.

• Basically used for cutting soap bars from the plodder at equal lengths
• Machine is equipped with cutting frame to cut the bars
• Reduces wastage of material
• User-friendly

CUTTING & STAMPING MACHINES

The automatic soap cutting and stamping machine is used to cut soap bar from the plodder, Cut the soap to billets and stamp the necessary logo.

SEMI AUTOMATIC CUTTING AND STAMPING MACHINES

We are offering our valuable customers a wide array of Cutting and Stamping Machine. The machines we offer are manufactured by a team of deft experts, following the norms and guidelines already laid down by the industry. The components are obtained by gear box and motor attachment.

To fulfill the diverse requirements of the clients, we offer these reliable and brilliantly performing machines in different sizes and specifications.

• Basically used for cutting soap bars from the plodder at equal lengths
• Machine is equipped with cutting frame to cut the bars
• Reduces wastage of material
• User-friendly
• Machine conveys the bars to cutting and stamping machine through a conveyor

AUTOMATIC SOAP CUTTING & STAMPING MACHINE

The automatic soap cutting and stamping machine is used to cut soap bar from the plodder, Cut the soap to billets and stamp the necessary logo. In order to manufacture these machines we obtain components from reputed vendors like pneumatic components are obtained from Festo/SMC , conveyors from Chorino and geared motors are bought from Bonfiglioli.

• The primary cutter cut the bars from the plodder at equal repeat lengths.
• The cutting system works based on the position of the sensor.
• The machine is provided with a cutting frame to cut the bars.
• The trimming waste is taken out by a conveyor and fed to the inclined belt conveyor for cutting waste recycling.
• All the pneumatic components are FESTO / SMC make.
• Geared motors are from BONFIGLIOLI
• The machine is designed with the flexibility for quick change over system between pack sizes.
• User-friendly system to vary lengths of bars.
• Bars are conveyed to cutting and stamping machine through a conveyor.
• The bars are sensed automatically and pushed forward for secondary bar cutting and stamping.

Washing Powder Machine has like a two different types :

• Mixing arm ‘F’ type
• Ribbon blender

Ribbon blenders constructed with solid U trough fitted with double helical agitator provides effective mix of different powder and liquid materials. The design of the blender ensures complete mix of all the particles leaving no unmixed spots.

• Bottom discharge is made of Specially Hydraulic system.The discharge may be directly connected with screw conveyors for further applications like filling or grinding
• Top of the blender will be covered with SS sheets or Polycarbonate windows
• End seals are glanced or mechanically sealed
• The requirement of ribbon blender is found in most of the industries ranging from Parma, foods, cosmetics, pesticides, chemical industries
• The blender is constructed with 'U' trough made of SS/MS material.
• Ribbon profiles of different types are constructed in the main shaft to provide thorough mixing.
• Design of ribbon profiles depends upon the product requirements

The machine is designed for sieving lump less and free flowing powder with the help of two beater blades fitted with clamp on square shaft inside the dome of machine, which is fitted inside with removable slit hole Cage sieve. Over size port is provided for taking out excess feed and over size material. Machine dome is fitted with removal folding panel. Fabricated from S.S. and fitted with clamp on square shaft supported with help of Spherical roller Bearing and Bearing Block. Made by perforation of 1.25 mm. thick stainless steel sheet having slit hole size: 4mm x 20 mm. The square shaft of cage mill is driven through Pulley & Belt arrangement.

Capacity : 350mmx700mm, 450mmx900mm, 600mmx1200mm, 750mmx1500mm, 1000mmx2000mm Batch Sizes.

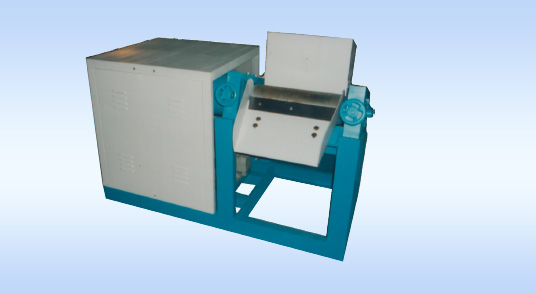

We manufacture Triple Roller Machines which is used in detergent cake industries and toilet Soap industries for preparing chips. It is used to provide fineness and homogeneity to the product. It is fabricated in mild steel and stainless steel with special alloy

Capacity :100mmx300mm, 150mmx450mm, 200mmx600mm, 250mmx750mm, 300mmx900mm, 350mmx1050mm

• Design of Bands in the Soap Shape Plays Vital Role in Providing Better Finish
• Centralized Lubrication System to Lubricate on a Daily Basis to All Moving Parts
• Safety Interlock Limit Switches Provided and All Moving Parts Are Covered Suitably.
• One Set of Dies Provided with Basic Machine. Additional Set of Dies Cost Extra.
• The Automatic Stamping Machine Is Used to Stamp Banded Soaps and Hotel Soaps
• Billets In-feed Conveyor Placed Parallel Or Perpendicular to Die and Die Box.
• Driven by 3 Hp Geared Motor Connected to Heavy Duty Indexing System.
• Speed of the Machine : Up to 60 Cakes Per Minute.
• Machine Is Constructed on A Sturdily Casted Structure to Avoid Vibrations

ROUND DISHWASH BAR CUTTING MACHINE

In order to manufacture these machines we obtain components from reputed vendors like pneumatic components are obtained from Festo/SMC , conveyors from Chorino and geared motors are bought from Bonfiglioli.

• SIDEC is the manufacture of high speed round dish wash bar cutting machines.
• Following list of machinery are provided for round dish wash bar line.
• Vertical slicer
• The primary cutter cut the bars from the plodder at equal repeat lengths.
• The cutting system works based on the position of the sensor.
• The machine is provided with a cutting frame to cut the bars
• The trimming waste is taken out by a conveyor and fed to the inclined belt conveyor for cutting waste recycling.
• All the pneumatic components are FESTO / SMC make.
• Geared motors are from BONFIGLIOLI.
• The machine is designed with the flexibility for quick change over system between pack sizes.
• User-friendly system to vary lengths of bars.
• Bars are conveyed to cutting and stamping machine through a conveyor..
• The bars are sensed automatically and pushed forward for secondary bar cutting and stamping.

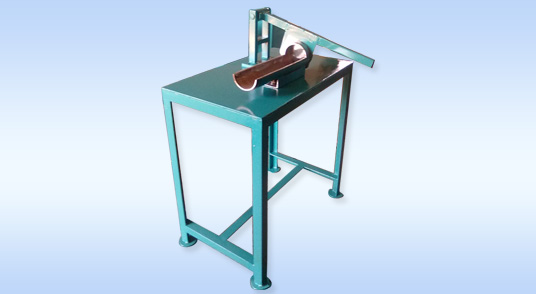

MANUAL DISH WASH ROUND BAR CUTTING & STAMPING MACHINE

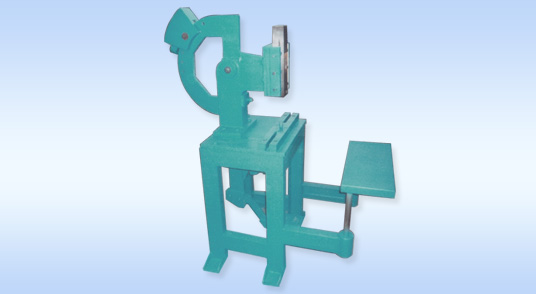

• The Hand Operated Soap Stamping Machine Stamps the Billet to Desired Die Shape
• Billet Need to Be Fed Manually One by One to Die and Die Box
• Eccentric Weight on the Stamper Activates the Force Required to Stamp Manually
• Ejection Rod Provided at the Bottom / Fixtures Provided to Fix the Die and Die

BELT CONVEYORS

We offer a Belt Conveyor is used for transport and buffer storage of boxed unit load with flat bottom. Belt Conveyor is a head drive PVC type belt conveyor with high speed and low noise. Belt conveyor offer by us is labor-saving & durable and is available in competitive price

ROLLER CONVEYOR

We have been able to provide roller conveyor that are widely used for industrial purpose. These are the very important basic thing off every industry for material handling .we manufacture this conveyor using by updated technology as per the industrial terms and standards.

Capacity: ton (as per the costumer requirement)

• Easy operate
• Advanced design
• Speed control

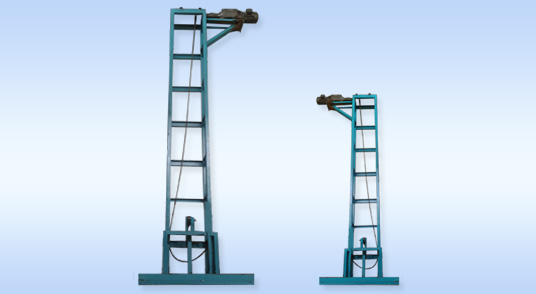

GOODS LIFTS

We manufacture Goods Lifts as per customer's specifications. We can manufacture goods lift up to 10T. The size of the lift and specifications are tailor made and designed to suit the customer’s requirement.

TROLLEYS

We are a renowned organization engaged in manufacturing a wide range of Trolleys that is mainly used to reduce the risks related with worker handling Our trolleys are easy to operate and maintain as well as these also transfer the material and goods from one place to another place . This is very important and mutable things of each and every industry and commercial places.

TANKS

In our wide range of products, we are providing a flawless range of Oil Tank and then Water Tank. These tanks are fabricated using supreme grade raw material with the help of our skilled professionals to meet the international standards. Our offered range is available in diverse specifications and can be customized as per the clients given specifications within promised time frame. Acclaimed for accurate dimensions, corrosion resistant, durability, compact design and high durability, these tanks are expansively demanded by our clients. To ensure eminence and flawlessness, this complete range is thoroughly tested on various industry parameters.

We provide from 1000 liter to 50,000 liter capacity & as per customer specification.

LUMPS BREAKER

Lump-breaking equipment is able to reduce lumps created in the production, storage or transportation of bulk solids and powders - without generating excessive dust and fines. The rotation of specially shaped blades through a fixed comb gives an efficient lump breaking action.
